Polymaker PC-ABS

卓越的机械性能
坚韧、抗冲击

Description

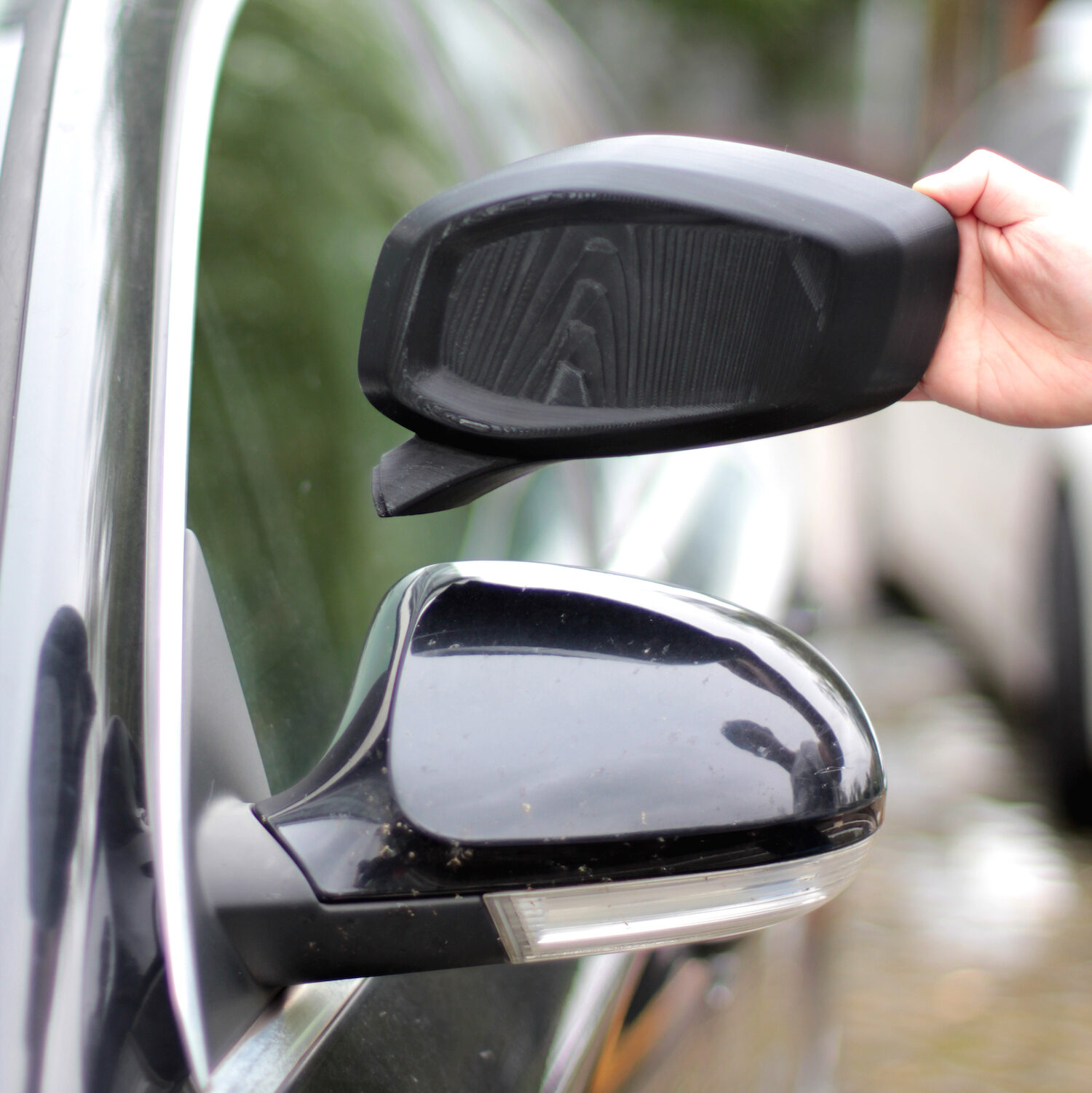

Polymaker™PC-ABS是一款PC/ABS聚合物混合物,提供卓越的韧性和耐热性,同时展现出良好的表面效果以及与金属电镀的良好兼容性,是汽车内饰部件(如仪表板、门把手或仪表盘)的理想选择。

卓越的韧性和耐热性
良好的表面效果
兼容金属电镀

Characteristics

Printing Temperature:

250˚C - 270˚C

Bed Temperature:

90˚C - 105˚C

Printing Speed:

30mm/s -50mm/s

Fan:

OFF

Direct Drive Retraction Distance:

1mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

3mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

75˚C for 6h

Dry Settings Notes:

(Only if the material has absorbed moisture)

Documentation

Colors

Colors

No SKUs found!

Related Video

Series

Specifications

Polymaker PC-ABS

print
settings

Printing Temperature:
250˚C - 270˚C
Bed Temperature:
90˚C - 105˚C
Printing Speed:
30mm/s -50mm/s
Fan:
OFF
Direct Drive Retraction Distance:
1mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
3mm
Indirect Drive Retraction Speed:
20mm
Dry Settings:
75˚C for 6h
(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):
1835.5 ± 65.5 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
1677 ± 94 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
39.9 ± 1.0 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
22.9 ± 1.2 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
4.2 ± 0.3 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
1.5 ± 0.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2081.4 ± 106.5 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
66.3 ± 0.9 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
25.8 ± 1.3 kJ/m
ISO 179, GB/T 1043
(XY)Charpy Impact Strength
Low Temperature (-30°C):
13 ± 2 kJ/m2
ISO 179-1/1eA:2010, -30°C

Thermal Properties

Glass Transition Temperature:
109.1 °C
DSC, 10°C/min
Melting Temperature:
109.1 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
106.4 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
111.7 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
135.1 °C
ISO 306, GB/T 1633

Material Properties
