PolyLite™ PETG

易于打印
耐热性比PLA高20°C

Description

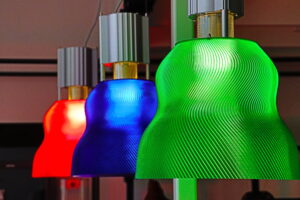

PolyLite™ PETG是一款高性价比的PETG线材,具有平衡的机械性能和易打印性。PolyLite™ PETG与PolyLite™ PLA一样易于打印,耐热性比后者高20˚C,耐用性更强。和PLA相比,PolyLite™ PETG适用于更多功能性应用,例如灯具、振动部件或产品设计原型。

良好的光扩散性
优秀的全能选手
良好的层间附着力

Characteristics

Printing Temperature:

230˚C - 240˚C

Bed Temperature:

70˚C - 80˚C

Printing Speed:

30mm/s -50mm/s

Fan:

20%

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

1mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

65˚C for 6h

Dry Settings Notes:

(Only if the material has absorbed moisture)

Colors

Colors

No SKUs found!

Series

Specifications

PolyLite™ PETG

print
settings

Printing Temperature:
230˚C - 240˚C
Bed Temperature:
70˚C - 80˚C
Printing Speed:
30mm/s -50mm/s
Fan:
20%
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
1mm
Indirect Drive Retraction Speed:
20mm
Recommended Support Materials:
PolyDissolve™ S1
Dry Settings:
65˚C for 6h
(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):
2116.8 ± 68.1 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
1898.7 ± 98.5 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
50.8 ± 0.9 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
42.8 ± 2.8 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
8.4 ± 1.7 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
3.3 ± 0.2 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
1898.5 ± 35.5 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
69.6 ± 0.8 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
2.6 ± 0.2 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
81 °C
DSC, 10°C/min
Melting Temperature:
81 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
74.8 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
78.4 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
84 °C
ISO 306, GB/T 1633

Material Properties
