PolyLite™ PC

天然透明
硬度极高

Description

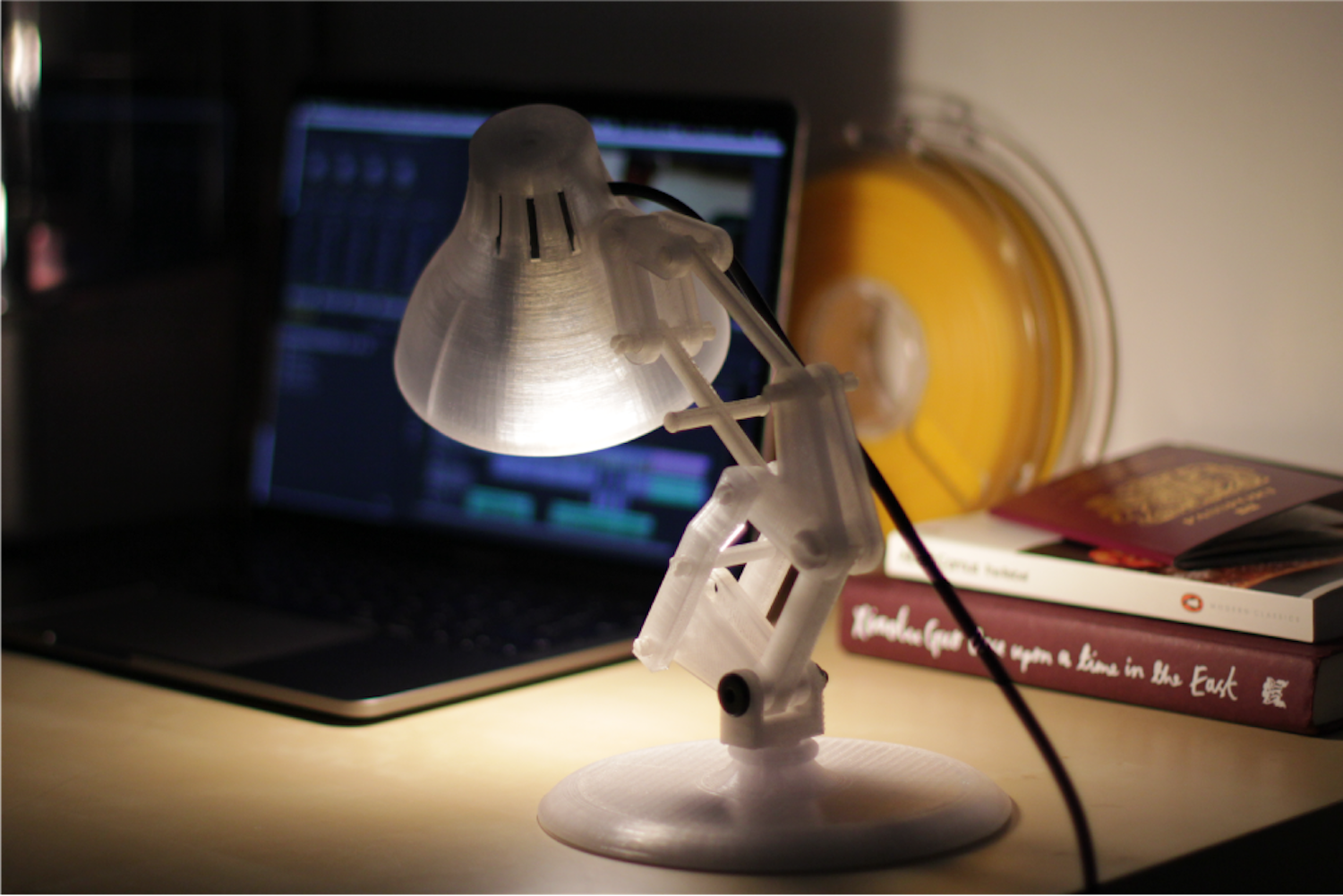

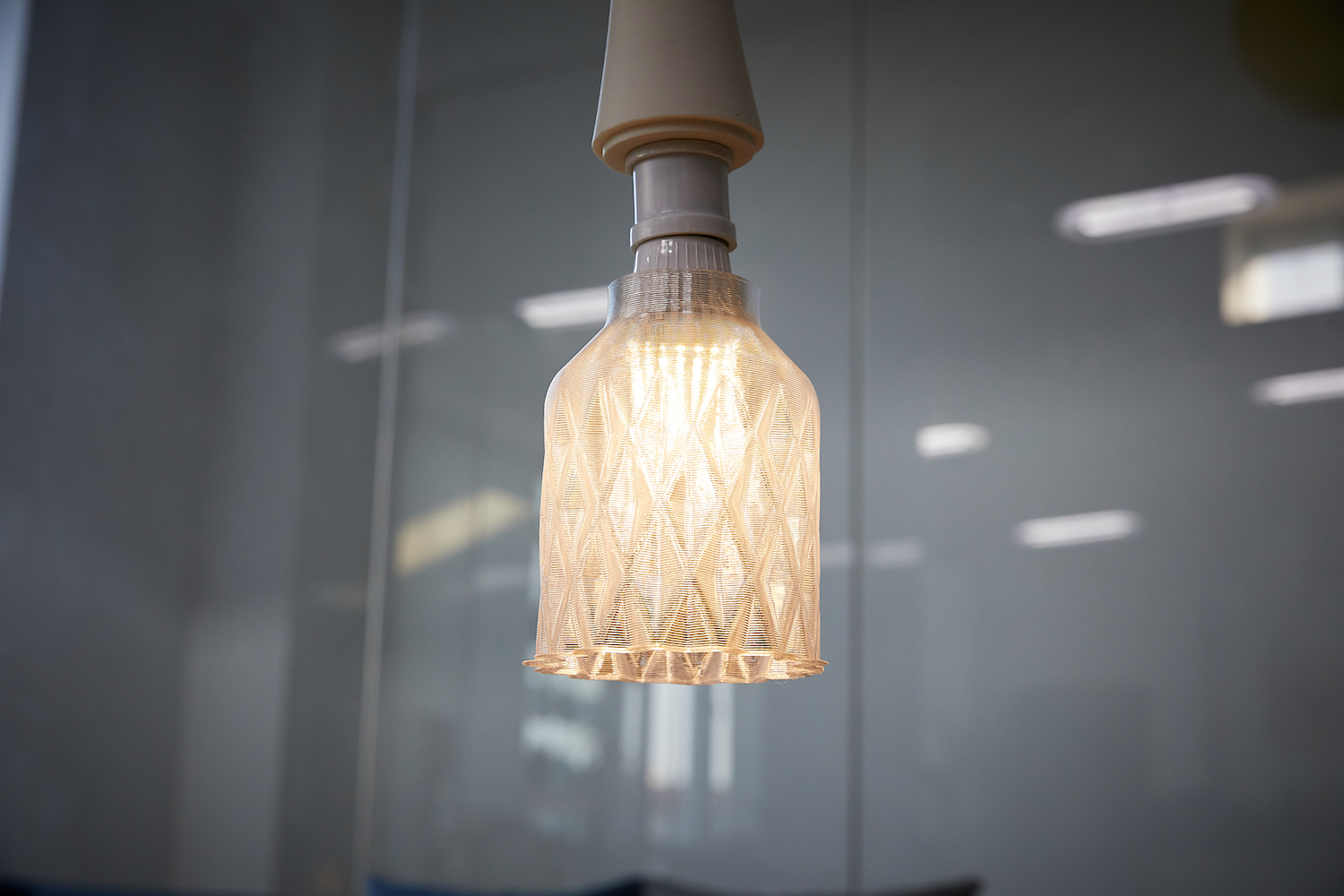

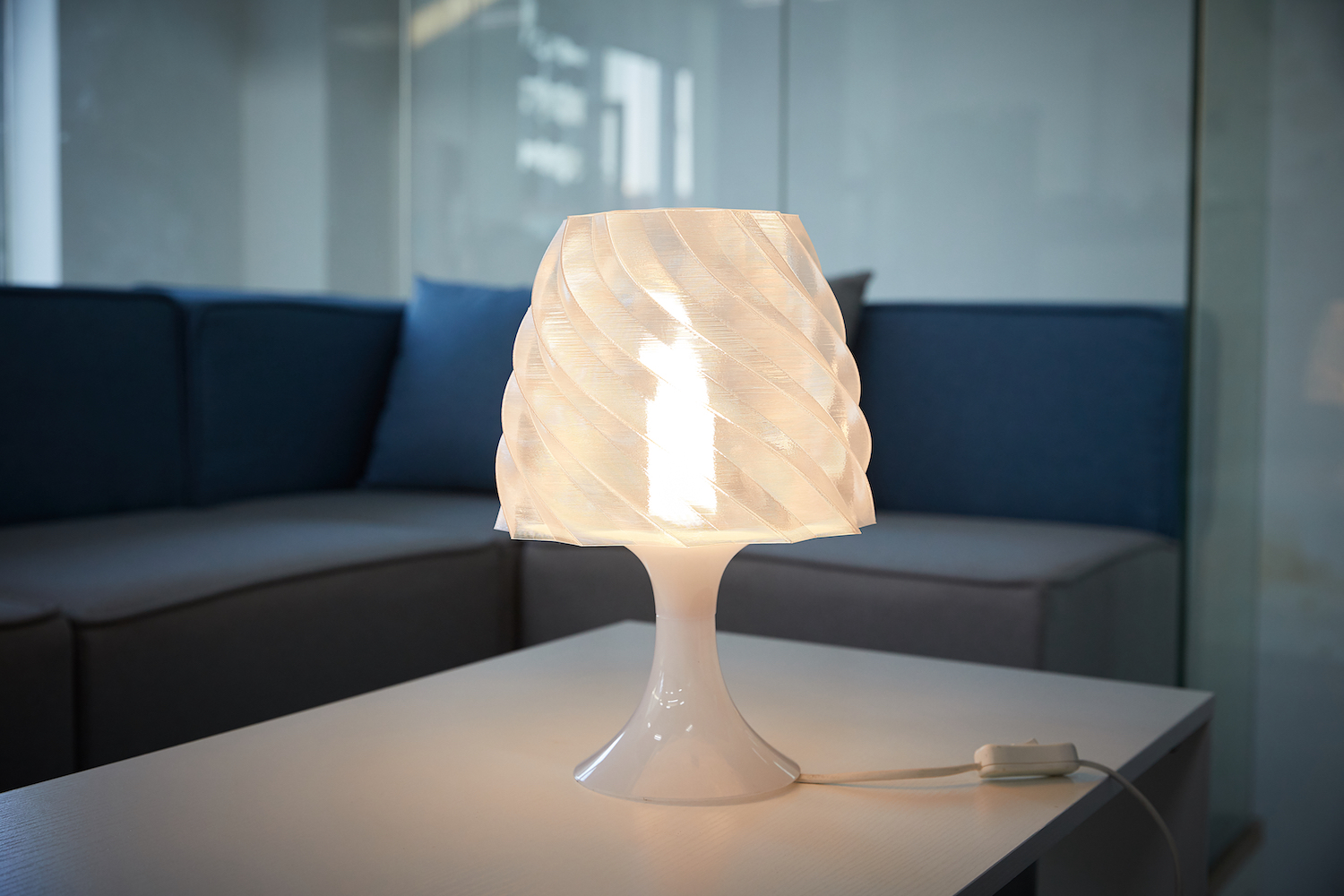

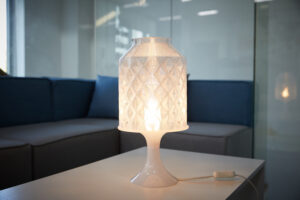

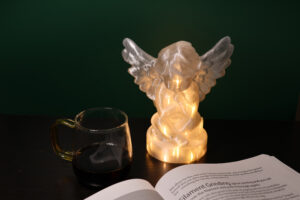

PolyLite™PC采用专门为3D打印设计的聚碳酸酯树脂生产。它提供高刚性和高耐热性,由于其天然的透明特性,它可以非常有效地扩散光线,是照明产品和灯罩应用的理想选择。打印大型PC部件需要封闭的温腔。



耐热
良好的光扩散性
高强度、高硬度

Characteristics

Printing Temperature:

250˚C - 270˚C

Bed Temperature:

90˚C - 105˚C

Printing Speed:

30mm/s -50mm/s

Fan:

OFF

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

1mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

75˚C for 12h

Dry Settings Notes:

(Only if the material has absorbed moisture)

Colors

Colors

No SKUs found!

Series

Specifications

PolyLite™ PC

print
settings

Printing Temperature:
250˚C - 270˚C
Bed Temperature:
90˚C - 105˚C
Printing Speed:
30mm/s -50mm/s
Fan:
OFF
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
1mm
Indirect Drive Retraction Speed:
20mm
Dry Settings:
75˚C for 12h
(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):
2497 ± 154 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2371 ± 55 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
69.1 ± 3.0 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
52.8 ± 1.7 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
4.8 ± 0.9 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
2.7 ± 0.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2640 ± 47 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
106.1 ± 1.6 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
4.1 ± 0.9 kJ/m
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
113.4 °C
DSC, 10°C/min
Melting Temperature:
113.4 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
106.6 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
111.2 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
119.5 °C
ISO 306, GB/T 1633

Material Properties
