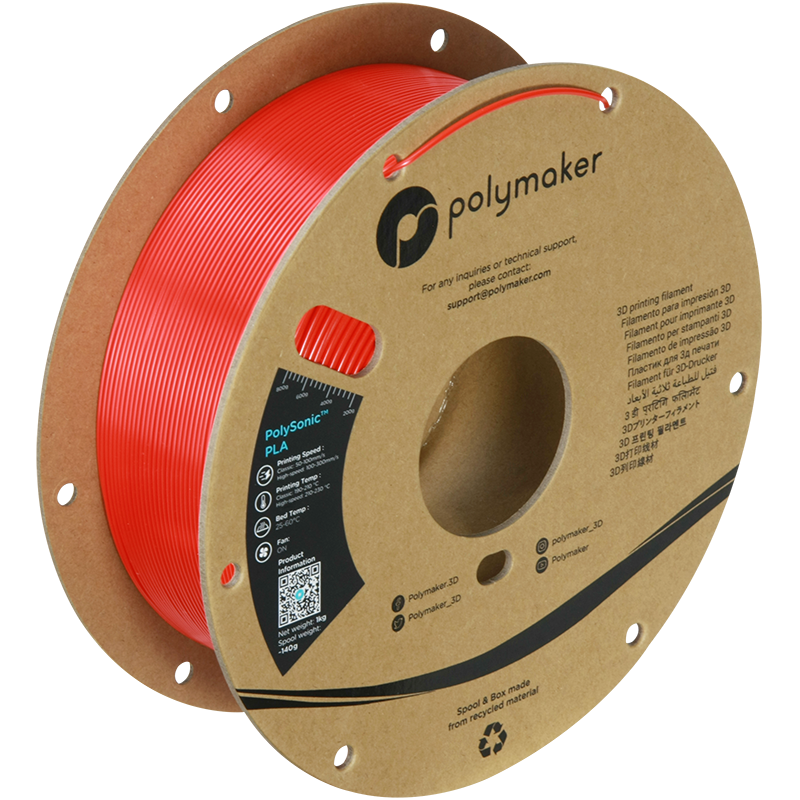

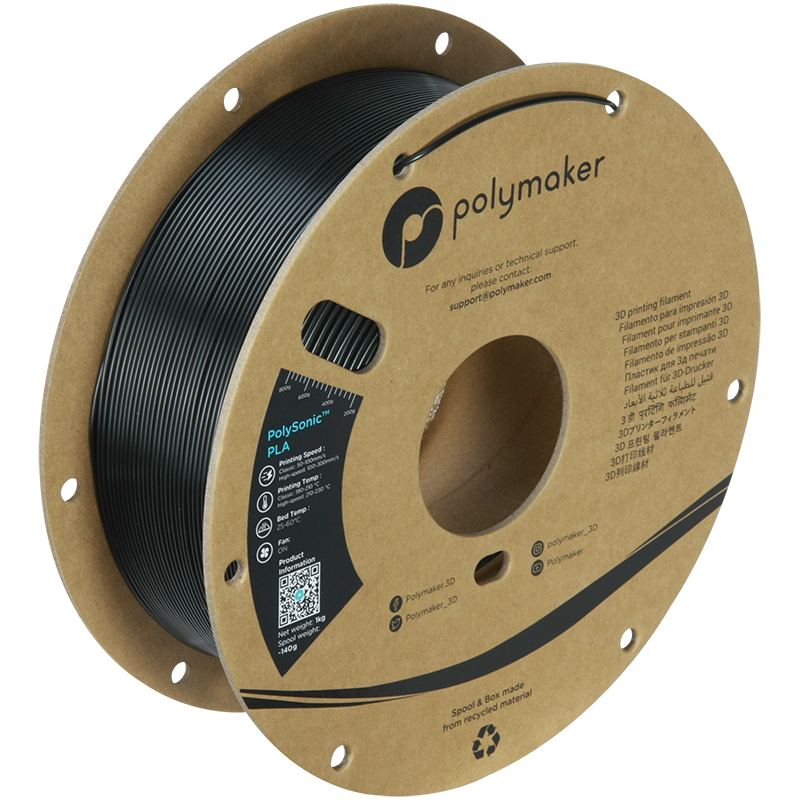

PolySonic™ PLA

高速PLA
准确且可重复

产品简介

PolySonic™PLA是一款革命性的高速3D打印线材,是增材制造领域的颠覆者。它拥有闪电般的挤出速率、尖端精度和卓越的层间附着力,让生产力达到全新水平,在保证强度和质量的前提下加速您的工作流程。

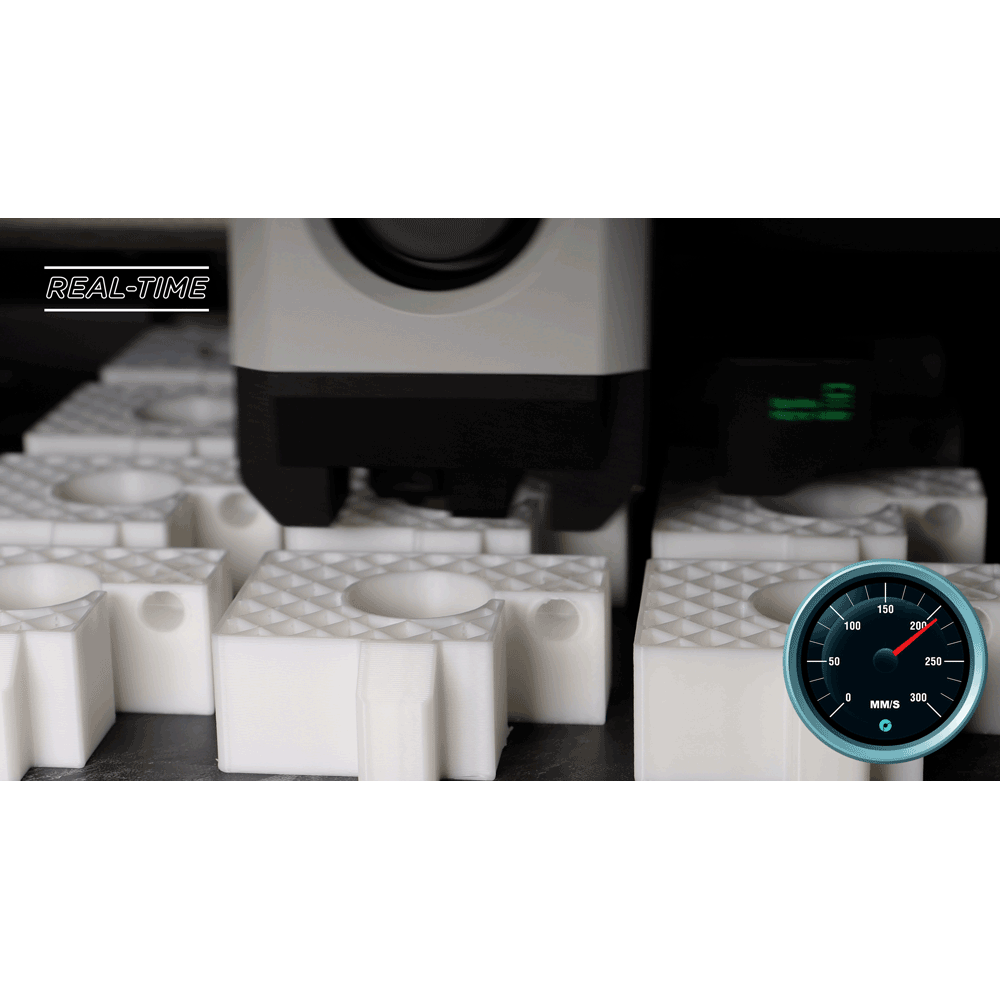

高速
稳定挤出
易打印

打印设置

打印温度:

210˚C - 230˚C

底板温度:

25˚C - 60˚C

打印速度:

100mm/s -300mm/s

风扇:

开启

干燥设置:

55˚C 烘干 6 小时

干燥设置说明:

(仅在材料吸收湿气时使用)

退火:

 不适用

Colors

Colors

No SKUs found!

相关视频

Series

Specifications

PolySonic™ PLA

print
settings

打印温度:
210˚C - 230˚C
底板温度:
25˚C - 60˚C
打印速度:
100mm/s -300mm/s
风扇:
开启
退火:
Dry Settings:
55˚C 烘干 6 小时
(仅在材料吸收湿气时使用)

MEchanical Properties

(Classic Speed)

(XY)Young's Modulus (MPa):
2878.3 ± 74.3 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2689.8 ± 92.0 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
46.0 ± 0.5 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
37.3 ± 0.7 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
21.5 ± 5.02 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
4.2 ± 2.0 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2868.2 ± 78.4 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
76.5 ± 0.9 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
6.1 ± 0.6 kJ/m2
ISO 179, GB/T 1043
* Based on 0.4 mm nozzle and 0.2mm layer thickness. Classic printing speed = 46.7mm/s, printing temperature = 210 °C. High printing speed = 300mm/s, printing temperature = 230 °C

MEchanical Properties

(HIGH Speed)

(XY)Young's Modulus (MPa):
2649.7 ± 78.3 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2210.4 ± 79.4 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
43.9 ± 0.4 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
30.4 ± 0.4 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
15.1 ± ±.9 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
3.3 ± 0.5 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2797.9 ± 40.7 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
71.4 ± 0.6 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
5.0 ± 0.5 kJ/m2
ISO 179, GB/T 1043
* Based on 0.4 mm nozzle and 0.2mm layer thickness. Classic printing speed = 46.7mm/s, printing temperature = 210 °C. High printing speed = 300mm/s, printing temperature = 230 °C

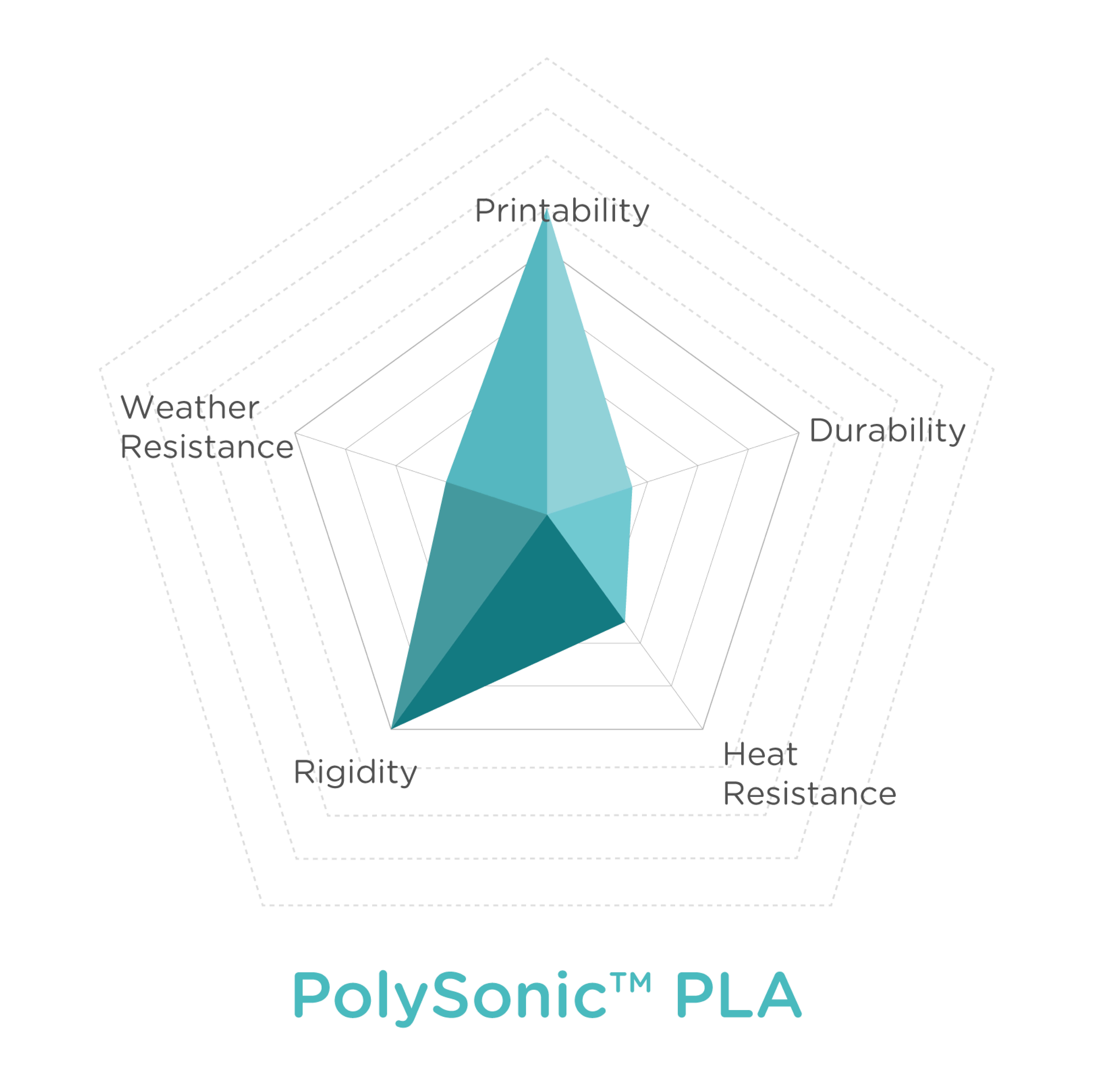

Material Properties
