PolySmooth™

酒精可平滑
消除层纹

Description

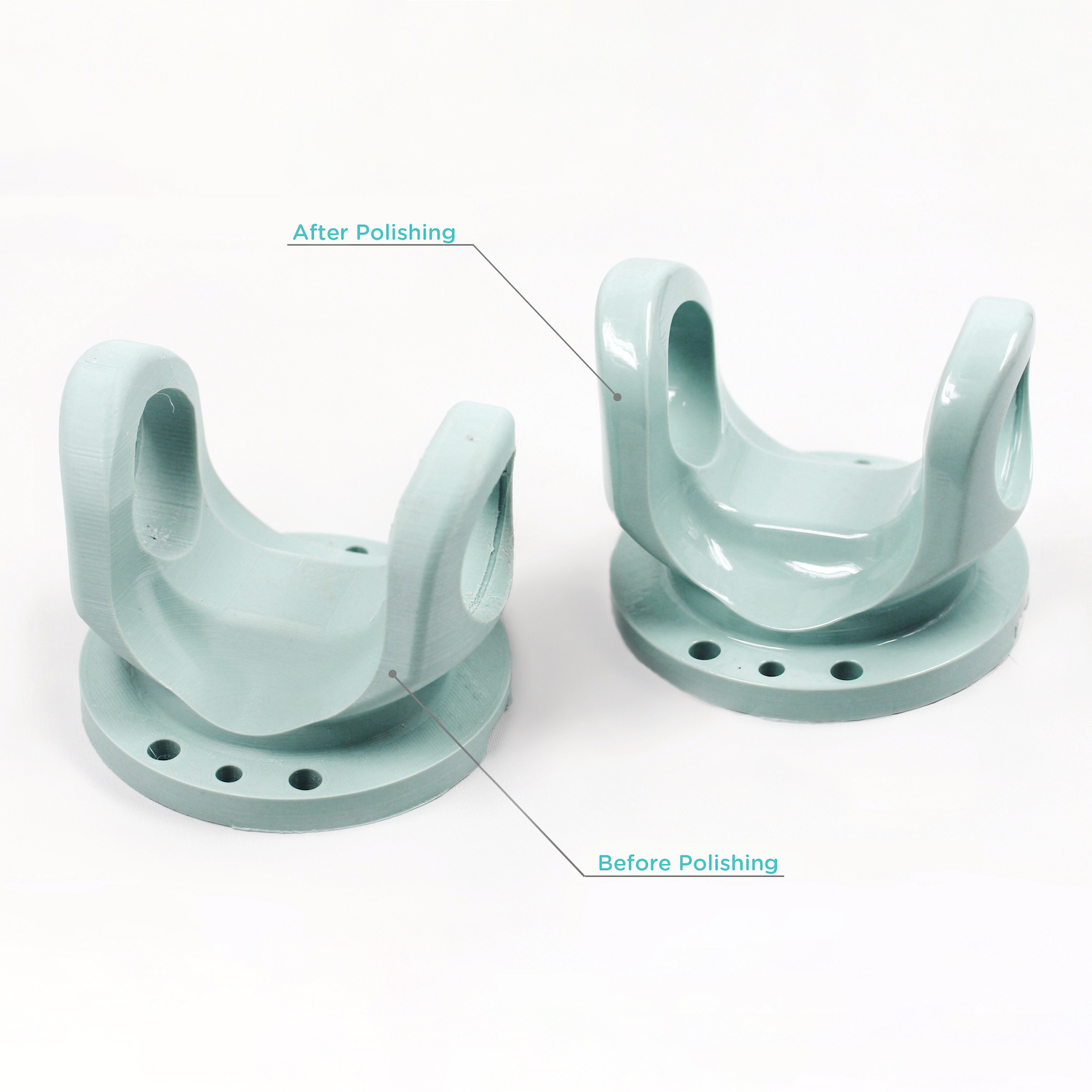

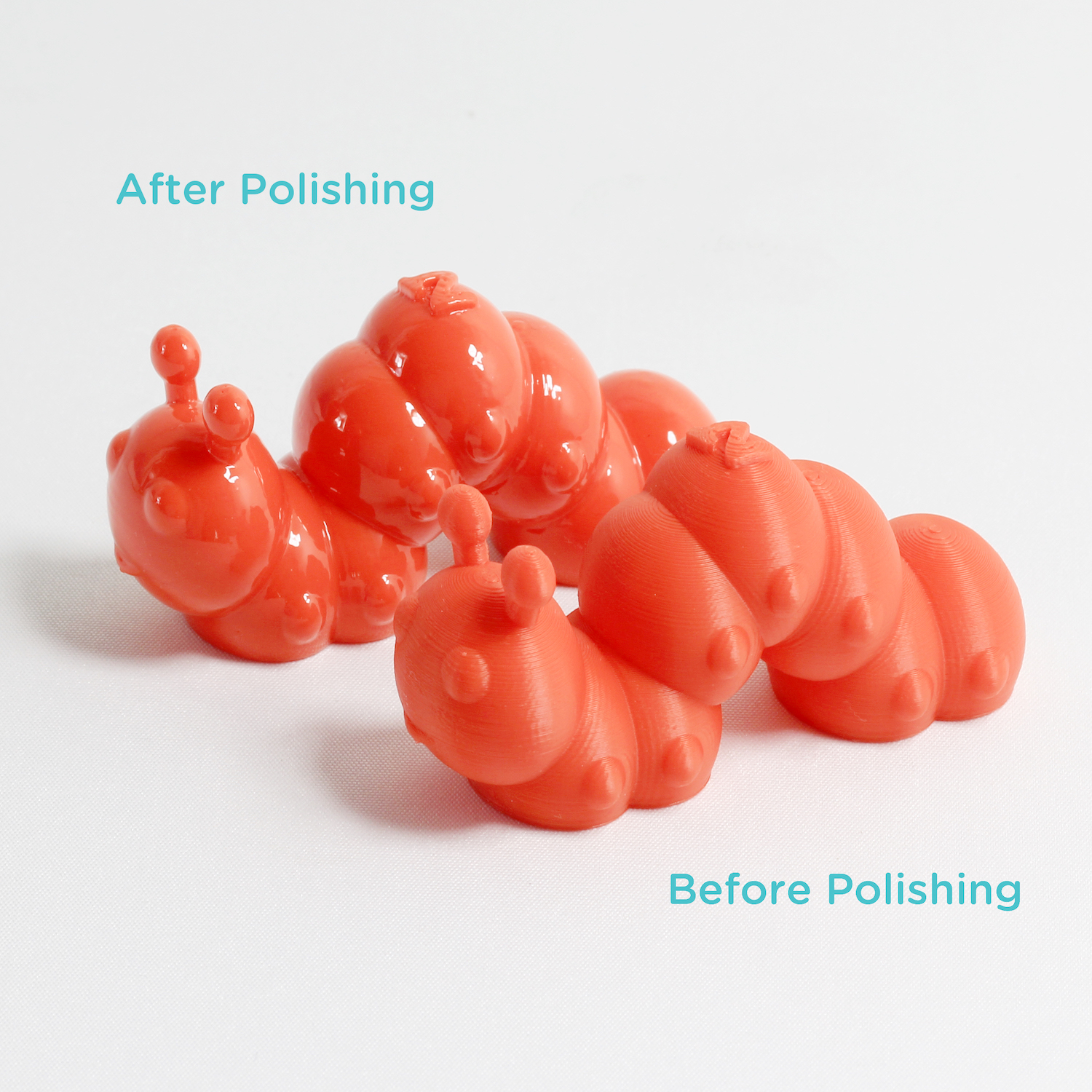

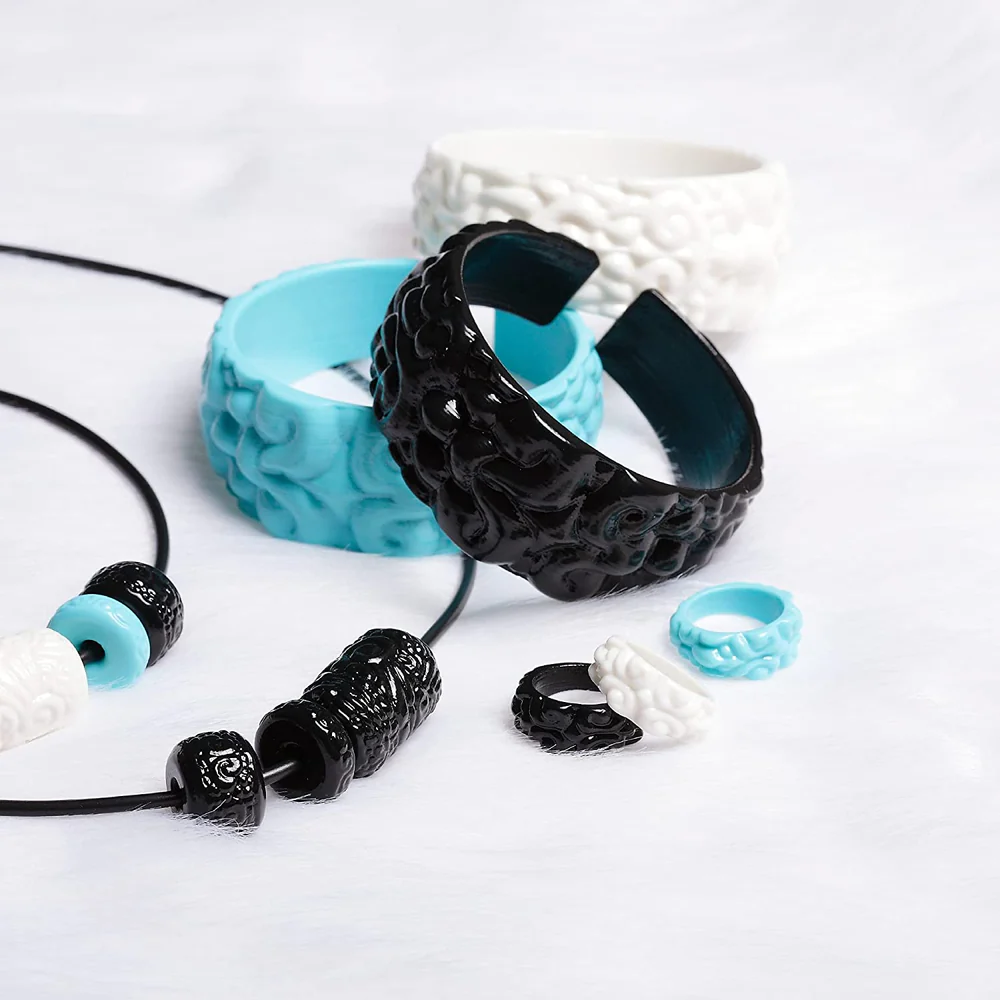

PolySmooth™是一款独特的、易于打印的线材,专为使用异丙醇或乙醇进行免提后处理而设计。表面可以被平滑以消除所有层纹,留下光滑、有光泽、均匀的表面。具有小细节的雕像或需要注塑成型外观的产品原型都可以受益于LayerFree™(无层纹™)技术。



后处理安全且容易
卓越的打印性
平衡的机械性能

Characteristics

Printing Temperature:

190˚C - 220˚C

Bed Temperature:

25˚C - 70˚C

Printing Speed:

30mm/s -60mm/s

Fan:

开启

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

1mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

55˚C烘干12小时

Dry Settings Notes:

(仅在材料吸湿时使用)

Colors

Colors

No SKUs found!

Related Video

Series

Specifications

PolySmooth™

print
settings

Printing Temperature:
190˚C - 220˚C
Bed Temperature:
25˚C - 70˚C
Printing Speed:
30mm/s -60mm/s
Fan:
开启
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
1mm
Indirect Drive Retraction Speed:
20mm
Recommended Support Materials:
PolyDissolve™ S1/PolySupport™
Dry Settings:
55˚C烘干12小时
(仅在材料吸湿时使用)

MEchanical Properties

(XY)Young's Modulus (MPa):
2092.7 ± 652.3 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
1614.3 ± 79.5 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
44.1 ± 0.8 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
18.4 ± 1.2 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
3.4 ± 0.4 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
1.3 ± 0.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2062.8 ± 200.8 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
76.2 ± 5.7 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
9.2 ± 0.7 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
70.0 °C
DSC, 10°C/min
Melting Temperature:
70.0 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
66.3 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
68.0 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
70.4 °C
ISO 306, GB/T 1633

Material Properties

Technology

Layer Free technology
