Fiberon™ PA6-CF20

极高的强度和韧性
耐热性极佳

Description

Fiberon™PA6-CF20是一款碳纤维增强的PA6(尼龙6)线材。碳纤维增强显著提高了刚度、强度和耐热性,并具有出色的层间附着力。



Fiberon™PA6-CF20与PolyMidePA6-CF配方相同,但Fiberon™PA6-CF20打印出的黑色可能略深。

热变形温度高
卓越的各向同性刚性
尺寸稳定

Characteristics

Printing Temperature:

280˚C - 300˚C

Bed Temperature:

25˚C - 50˚C

Printing Speed:

30mm/s -60mm/s

Fan:

OFF

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

6mm

Indirect Drive Retraction Speed:

60mm

Drying Settings:

100˚C for 8h

Dry Settings Notes:

(Only if the material has absorbed moisture)

Annealing:

80˚C for 6h

Colors

Colors

No SKUs found!

Series

Specifications

Fiberon™ PA6-CF20

print
settings

Printing Temperature:
280˚C - 300˚C
Bed Temperature:
25˚C - 50˚C
Printing Speed:
30mm/s -60mm/s
Fan:
OFF
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
6mm
Indirect Drive Retraction Speed:
60mm
Annealing:
80˚C for 6 h
Dry Settings:
100˚C for 8h
(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):
7453.5 ± 656.2 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
4354.5 ± 206.4 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
105. ± 5.0 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
67.7 ± 4.7 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
3.0 ± 0.3 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
2.5 ± 0.7 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
8339.4 ± 369.4 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
169.0 ± 4.7 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
13.3 ± 0.5 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
74.2 °CPolyMide™ PA6-CF is a 20% carbon fiber reinforced Nylon 6 filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion thanks to Fiber Adhesion™ Technology. PolyMide™ PA6-CF outperforms almost every 3D printing material, offering extreme durability and functionality while featuring a heat deflection temperature of 215°C.
DSC, 10°C/min
Melting Temperature:
74.2 °CPolyMide™ PA6-CF is a 20% carbon fiber reinforced Nylon 6 filament. The carbon fiber reinforcement provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion thanks to Fiber Adhesion™ Technology. PolyMide™ PA6-CF outperforms almost every 3D printing material, offering extreme durability and functionality while featuring a heat deflection temperature of 215°C.
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
173.1 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
215.2 °C
ISO 75 0.45MPa

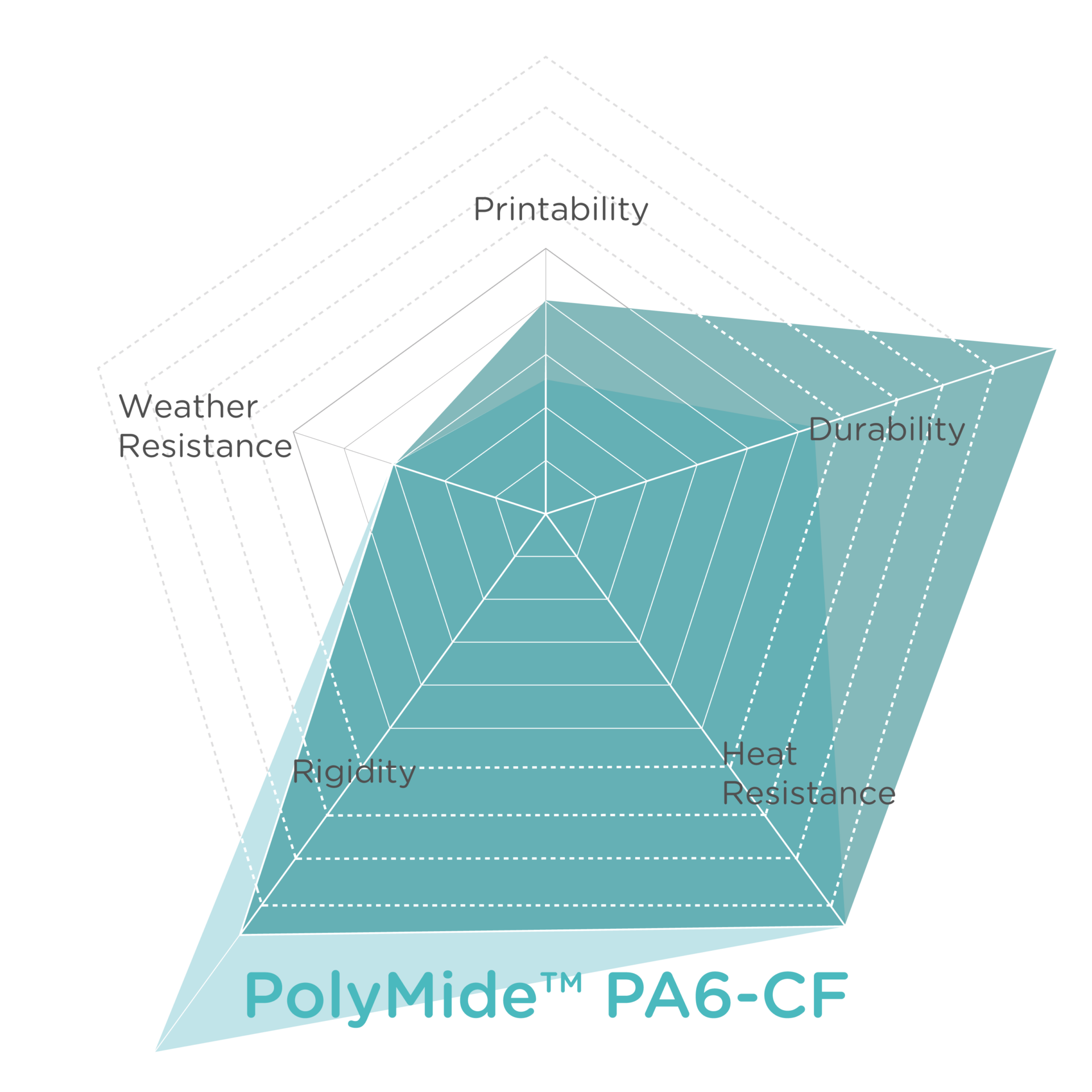

Material Properties

Technology

Warp-Free technology

Fiber adhesion technology
