PolyMide™ CoPA

耐热180°C
超高韧性

Description

PolyMide™CoPA是尼龙6和尼龙6.6的共聚物,结合了尼龙6的高拉伸强度特性和尼龙6.6的耐热特性。Warp-Free™(防翘曲™)技术通过减缓结晶速度,使CoPA易于在开放式热床打印机上打印。CoPA展现出卓越的机械和热性能,适用于苛刻环境中的部件。

高耐热性
平衡的机械性能
尺寸稳定性高

Characteristics

Printing Temperature:

250˚C - 270˚C

Bed Temperature:

25˚C - 50˚C

Printing Speed:

30mm/s -50mm/s

Fan:

关闭

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

50mm/s

Indirect Drive Retraction Distance:

6mm

Indirect Drive Retraction Speed:

60mm

Drying Settings:

80˚C 烘干 6h

Dry Settings Notes:

(仅在材料吸湿时使用)

Annealing:

80˚C 烘干 6h

Colors

Colors

No SKUs found!

Series

Specifications

PolyMide™ CoPA

print
settings

Printing Temperature:
250˚C - 270˚C
Bed Temperature:
25˚C - 50˚C
Printing Speed:
30mm/s -50mm/s
Fan:
关闭
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
50mm/s
Indirect Drive Retraction Distance:
6mm
Indirect Drive Retraction Speed:
60mm
Annealing:
80˚C for 6 h
Recommended Support Materials:
PolyDissolve™ S1
Dry Settings:
80˚C 烘干 6h
(仅在材料吸湿时使用)

MEchanical Properties

(XY)Young's Modulus (MPa):
2223.8 ± 199.6 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2564.5 ± 97.6 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
66.2 ± 0.9 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
43.3 ± 9.1 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
9.9 ± 1.5 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
1.8 ± 0.4 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
1667 ± 118 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
97.9 ± 1.1 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
9.6 ± 1.4 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
67 °C
DSC, 10°C/min
Melting Temperature:
67 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
69.8 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
110.5 °C
ISO 75 0.45MPa

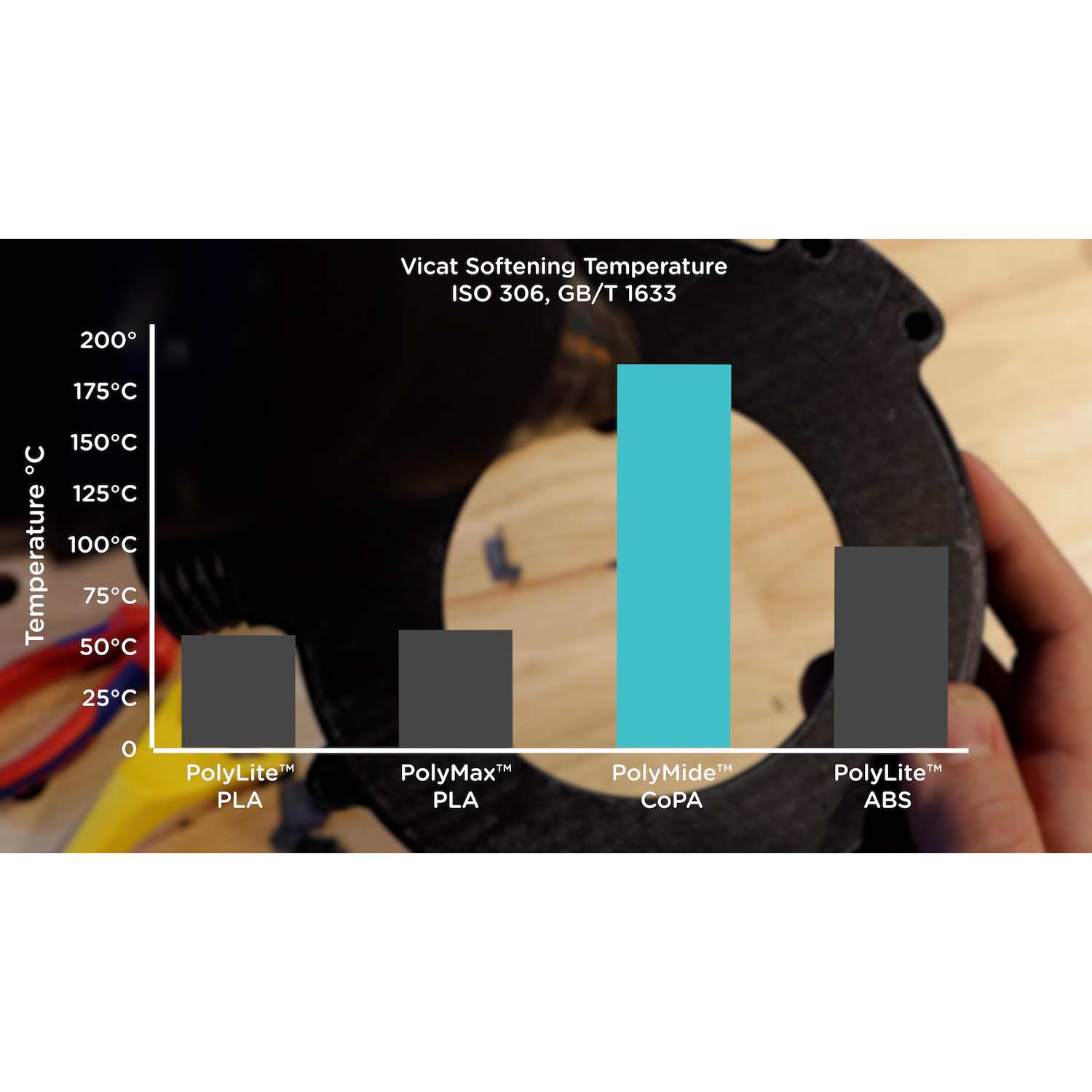

Vicat Softening Temperature:
180 °C
ISO 306, GB/T 1633

Material Properties

Technology

Warp-Free technology
