PolyMax™ PC-FR

阻燃
高韧度PC

Description

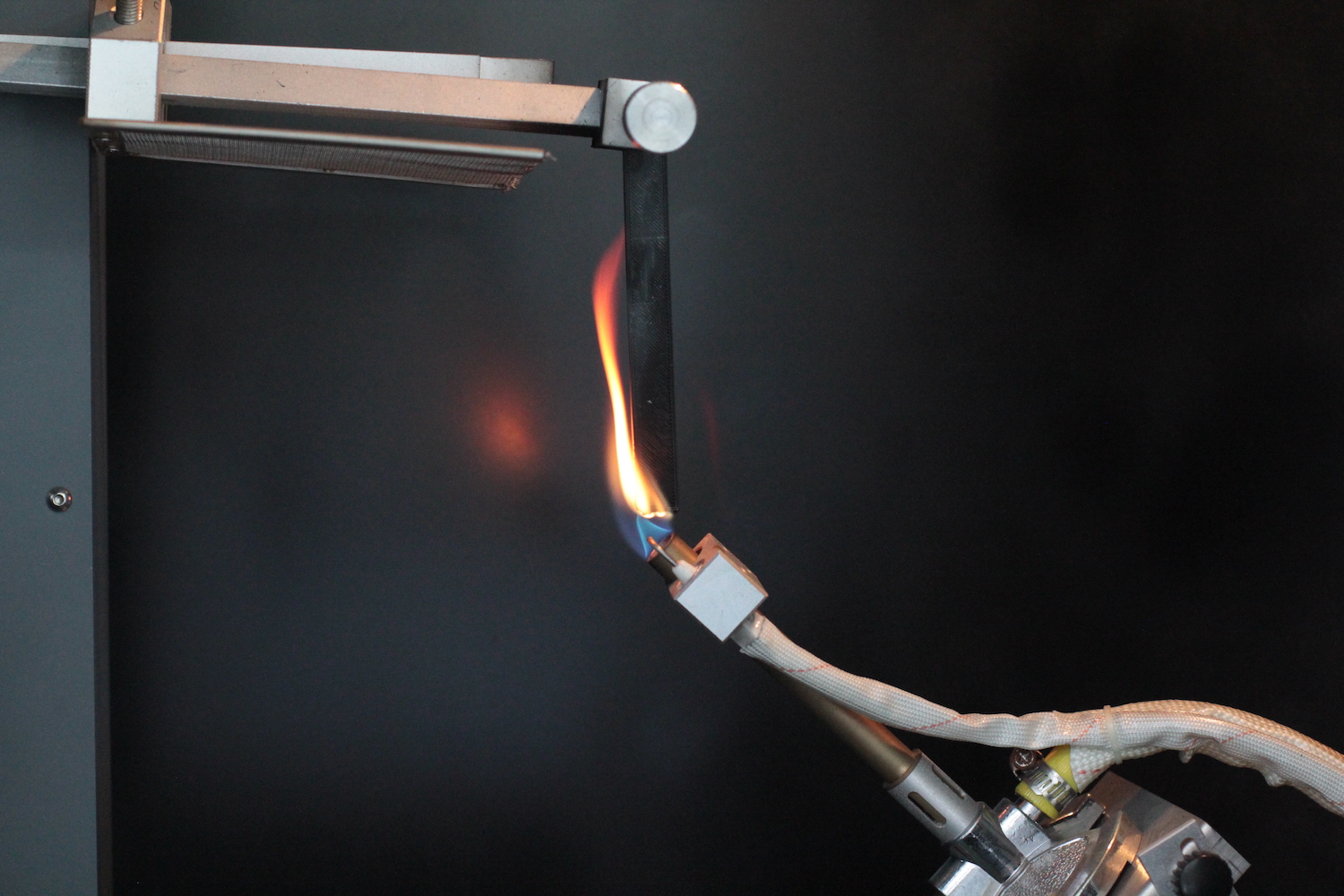

PolyMax™PC-FR是一款阻燃PC线材,在UL94阻燃性测试中达到V0等级,同时展现出较高强度和韧性。PolyMax™PC-FR凭借其自熄特性,可以降低火灾强度或减缓/阻止火势蔓延。

阻燃
高刚高韧
耐热

Characteristics

Printing Temperature:

250˚C - 270˚C

Bed Temperature:

90˚C - 105˚C

Printing Speed:

30mm/s -50mm/s

Fan:

OFF

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

1mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

75˚C for 6h

Dry Settings Notes:

(Only if the material has absorbed moisture)

Colors

Colors

No SKUs found!

Related Video

Series

Specifications

PolyMax™ PC-FR

print
settings

Printing Temperature:
250˚C - 270˚C
Bed Temperature:
90˚C - 105˚C
Printing Speed:
30mm/s -50mm/s
Fan:
OFF
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
1mm
Indirect Drive Retraction Speed:
20mm
Dry Settings:
75˚C for 6h
(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):
2634.1 ± 182.2 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
2743.2 ± 72.2 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
67.1 ± 4.5 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
46.2 ± 4.8 MPa
ISO 527, GB/T 1040
(XY)Elongation at break(%):
3.5 ± 0.7 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
2.2 ± 0.3 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
2518.2 ± 53.3 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
96.6 ± 1.3 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
11.7 ± 1.6 kJ/m
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
115 °C
DSC, 10°C/min
Melting Temperature:
115 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
107 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
110 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
116 °C
ISO 306, GB/T 1633

Material Properties

Technology

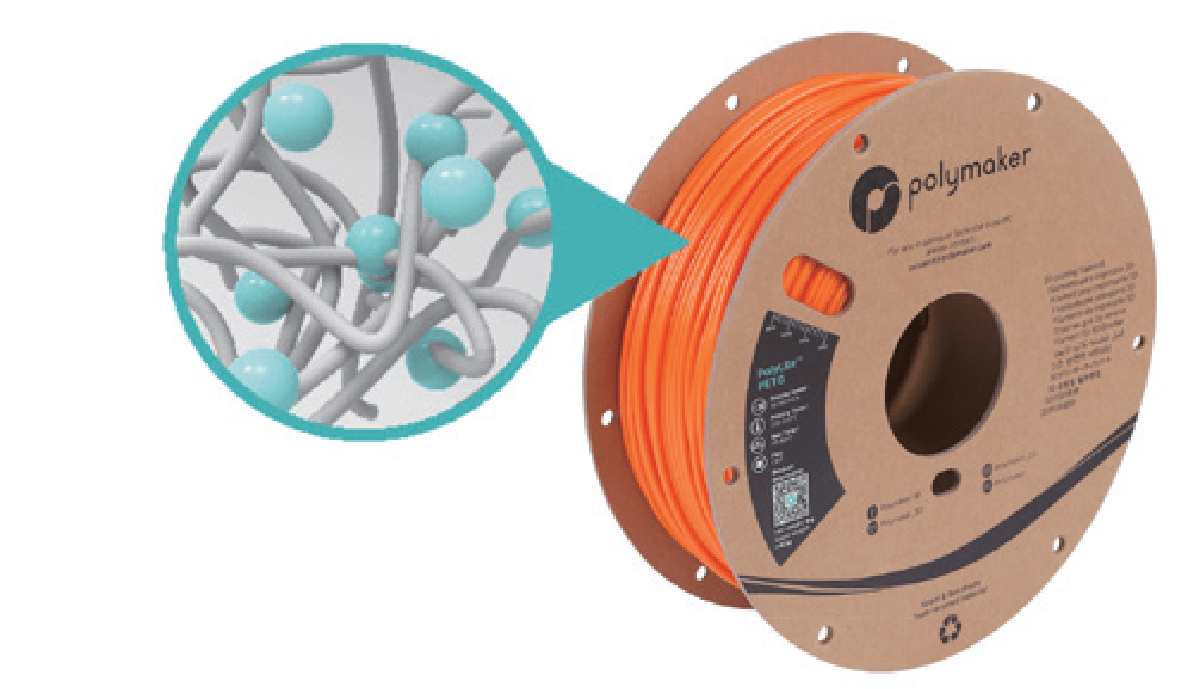

Nano reinforcement Technology
