PolyLite™ ASA

耐候性
UV稳定

Description

PolyLite™ASA是ABS的替代材料,具有更佳的耐候性。其抗紫外线性和卓越的机械性能使其成为户外应用的完美选择。PolyLite™ASA具有与PolyLite™ABS相同的机械和热性能,同时能够抵抗阳光(UV)和一般天气。其良好的耐候性使其成为需要经受自然环境的部件的理想选择。

耐水
耐紫外线
良好的热性能和机械性能

Characteristics

Printing Temperature:

240˚C - 260˚C

Bed Temperature:

75˚C - 95˚C

Printing Speed:

30mm/s -50mm/s

Fan:

OFF

Direct Drive Retraction Distance:

1mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

3mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

70˚C for 6h

Dry Settings Notes:

(Only if the material has absorbed moisture)

Colors

Colors

No SKUs found!

Series

Specifications

PolyLite™ ASA

print
settings

Printing Temperature:
240˚C - 260˚C
Bed Temperature:
75˚C - 95˚C
Printing Speed:
30mm/s -50mm/s
Fan:
OFF
Direct Drive Retraction Distance:
1mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
3mm
Indirect Drive Retraction Speed:
20mm
Dry Settings:
70˚C for 6h
(Only if the material has absorbed moisture)

MEchanical Properties

(XY)Young's Modulus (MPa):
2174.6 ± 41.1 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
1971.6 ± 78.8 MPa
ISO 527, GB/T 1040
(XY)Tensile Strength:
38.6 ± 0.3 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
30.0 ± 0.5 MP
ISO 527, GB/T 1040
(XY)Elongation at break(%):
4.4 ± 1.0 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
2.4 ± 0.1 %
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
1939.7 ± 50.4 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
60.9 ± 0.9 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
10.5 ± 0.6 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
97.8 °C
DSC, 10°C/min
Melting Temperature:
97.8 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
100.2 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
102.6 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
105.3 °C
ISO 306, GB/T 1633

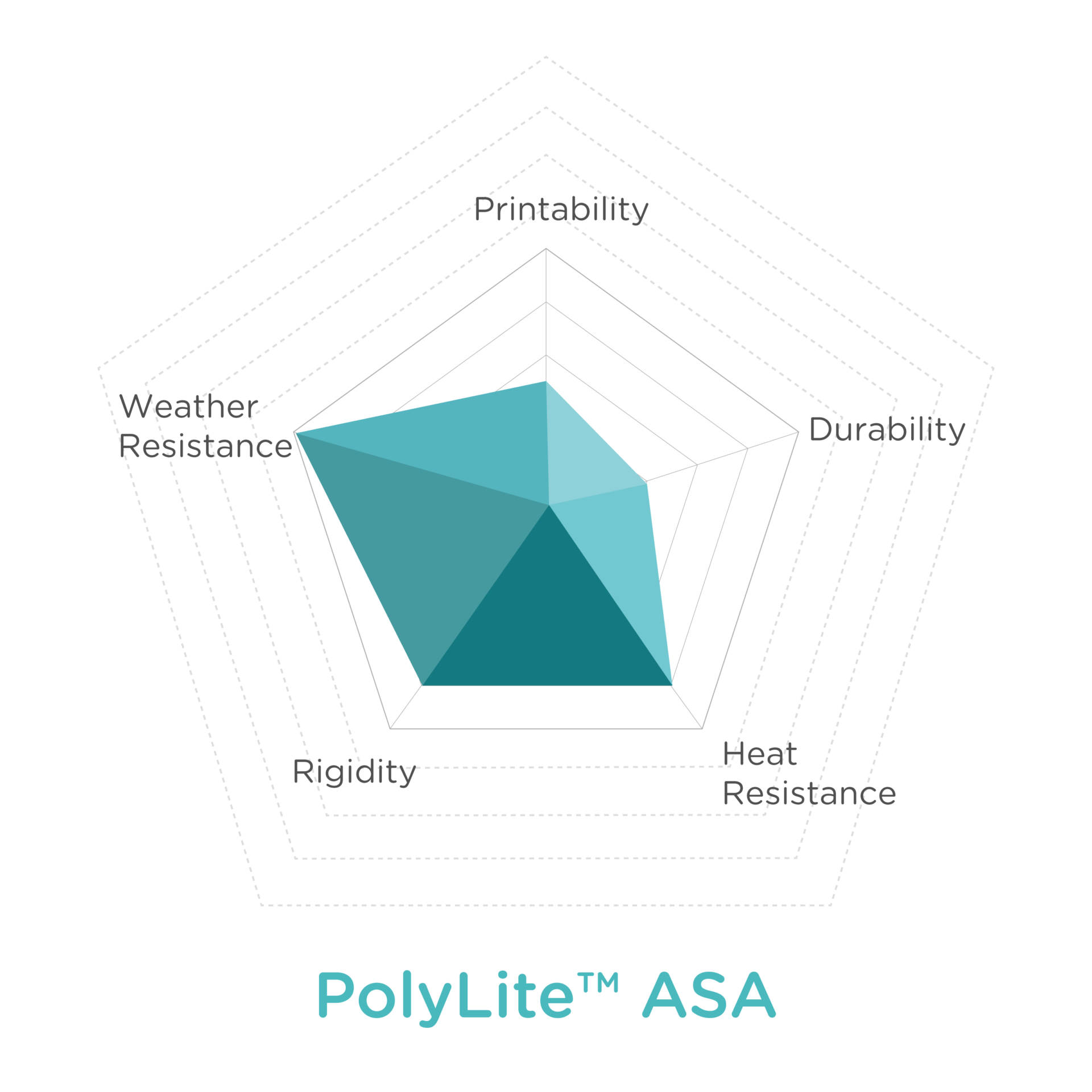

Material Properties
