PolyCast™

燃烧非常干净
灰分残留<0.003%

Description

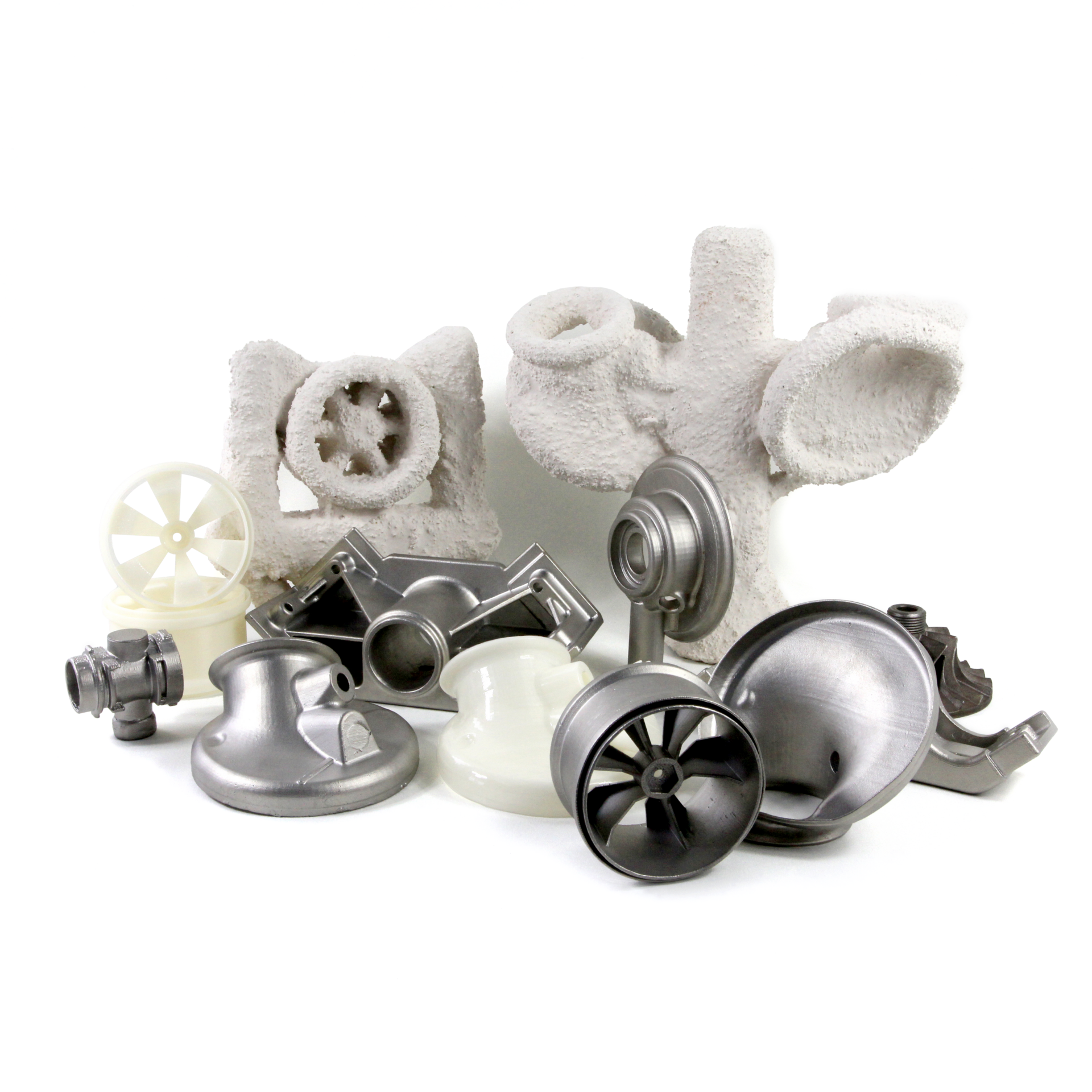

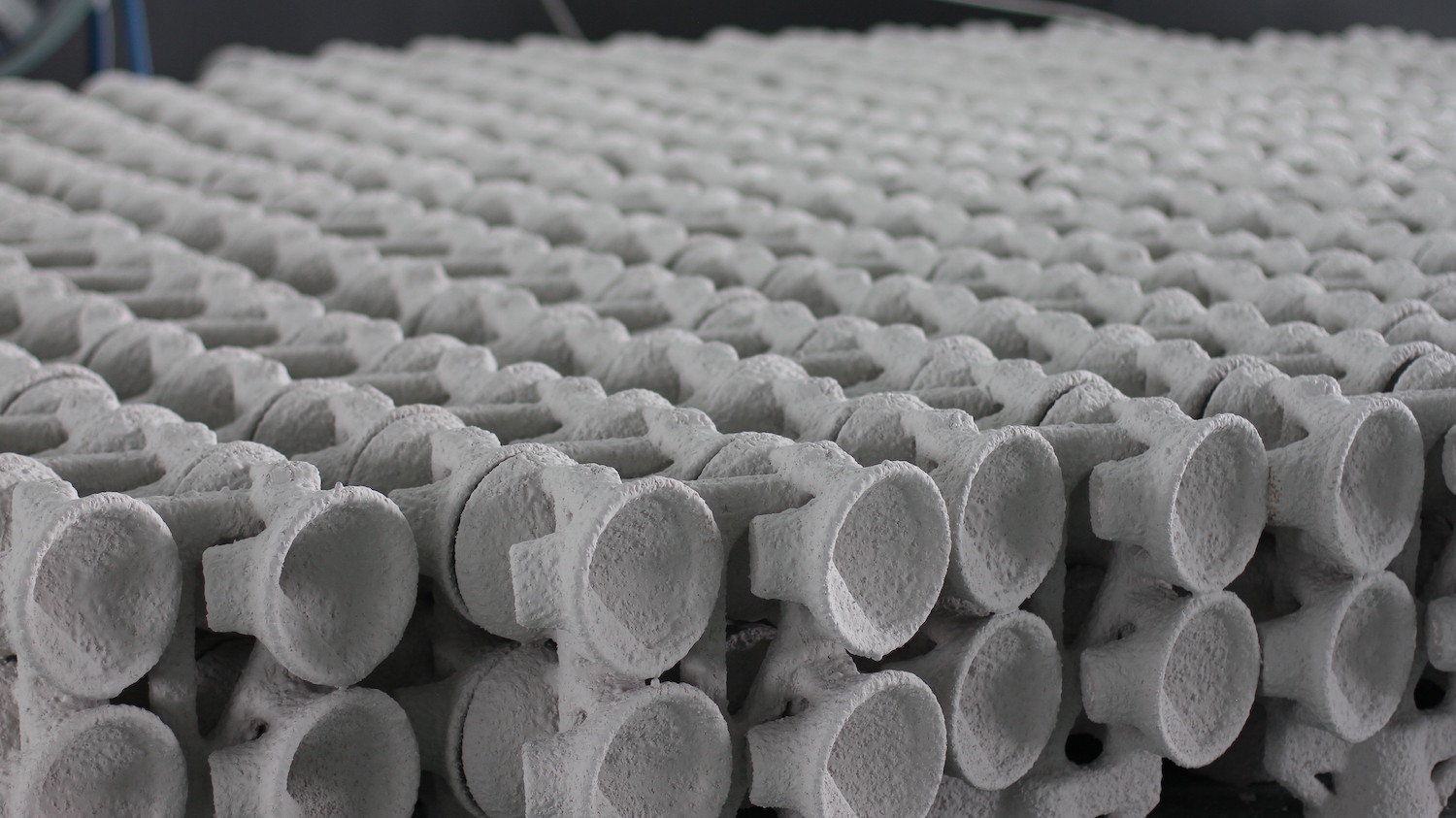

PolyCast™是一款易于打印的线材,专为熔模铸造应用而设计。采用AshFree™(无灰分™)技术,使用PolyCast™3D打印的模型在陶瓷熔模玻璃化过程中可以完全气化,通常留下的灰分残留重量小于0.003%。PolyCast™通过省去蜡注塑模具加工过程,显著降低了成本和交付周期。

燃烧残留低
后处理安全且容易
卓越的打印性

Characteristics

Printing Temperature:

190˚C - 220˚C

Bed Temperature:

25˚C - 70˚C

Printing Speed:

40mm/s -60mm/s

Fan:

开启

Direct Drive Retraction Distance:

3mm

Direct Drive Retraction Speed:

40mm/s

Indirect Drive Retraction Distance:

1mm

Indirect Drive Retraction Speed:

20mm

Drying Settings:

50˚C烘干12小时

Dry Settings Notes:

(仅在材料吸湿时使用)

Colors

Colors

No SKUs found!

Series

Specifications

PolyCast™

print
settings

Printing Temperature:
190˚C - 220˚C
Bed Temperature:
25˚C - 70˚C
Printing Speed:
40mm/s -60mm/s
Fan:
开启
Direct Drive Retraction Distance:
3mm
Direct Drive Retraction Speed:
40mm/s
Indirect Drive Retraction Distance:
1mm
Indirect Drive Retraction Speed:
20mm
Recommended Support Materials:
PolyDissolve™ S1/PolySupport™
Dry Settings:
50˚C烘干12小时
(仅在材料吸湿时使用)

MEchanical Properties

(XY)Young's Modulus (MPa):
1745.2 ± 151.4 MPa
ISO 527, GB/T 1040
(Z)Young's Modulus (MPa):
N/A
ISO 527, GB/T 1040
(XY)Tensile Strength:
35.7 ± 1.7 MPa
ISO 527, GB/T 1040
(Z)Tensile Strength:
N/A
ISO 527, GB/T 1040
(XY)Elongation at break(%):
5.8 ± 0.9 %
ISO 527, GB/T 1040
(Z)Elongation at break(%)
N/A
ISO 527, GB/T 1040
(XY)Bending Modulus (MPa):
1198.6 ± 173.8 MPa
ISO 178, GB/T 9341
(XY)Bending Strength (MPa):
60.2 ± 1.6 MPa
ISO 178, GB/T 9341
(XY)Charpy Impact Strength:
9.6 ± 0.9 kJ/m2
ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature:
70.0 °C
DSC, 10°C/min
Melting Temperature:
70.0 °C
DSC, 10°C/min
Heat Deflection Temperature
(1.8MPa):
52.7 °C
ISO 75 1.8MPa
Heat Deflection Temperature
(0.45MPa)
66.5 °C
ISO 75 0.45MPa
Vicat Softening Temperature:
67.2 °C
ISO 306, GB/T 1633

Material Properties

Technology

Ash Free technology
